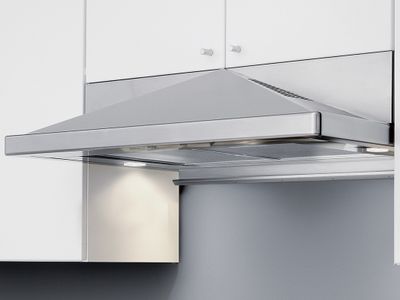

Zephyr Pyramid 29.94" Stainless Steel Under Cabinet Wall Ventilation


Model #:

ZPY-E30AS290

Model #: ZPY-E30AS290
286133
Zephyr
$449.00

At a Glance

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design also features an adjustable back-panel utensil bar that accommodates a variety of cabinet depths to put cooking utensils within easy reach. New control configuration and 12? depth ensure simple operation and a true fit with popular cabinet styles.Read More

$449.00

What We Offer

Services

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design also features an adjustable back-panel utensil bar that accommodates a variety of cabinet depths to put cooking utensils within easy reach. New control configuration and 12? depth ensure simple operation and a true fit with popular cabinet styles.

Dual-Level Lighting

Halogen Lighting

Adjustable Utensil Bar

Aluminum Mesh Filters

Mechanical Slide Controls

Optional Recirculating Kit

Vertical or Horizontal Ducting

Useful Documents
Specifications

General Specs

Width (in.)29.94
Depth (in.)12
ColorStainless Steel
PositioningStationary
Manufacturer Warranty1 Year Labor / 3 Year Parts
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)30
Maximum CFM290
Voltage120
Amp2
Frequency60

Overview

Blower CFM (Min. - Max.)120 - 290
Sones (Min. - Max.)1.1 - 3.2
ControlsMechanical Slide
Speed Levels3
LightingHalogen, 50W x2
Dual-Level LightingYes
FiltersAluminum Mesh x2
Recirculating OptionYes
Adjustable Utensil RailYes, Up to 3”
Mounting Height Range24” - 32”

Duct Specifications

Vertical Internal Blower7” Round or 3-1/4” x 10”
Horizontal Internal Blower3-1/4” x 10”
WarningProposition 65 Warning for California Residents
