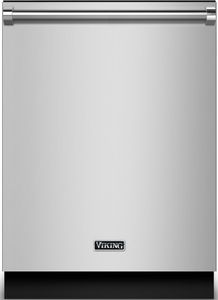

Viking® 1 Series 24" Built-In Dishwasher-Stainless Steel
At a Glance
Product Dimensions 35.88"h x 23.56"w x 22.19"d
Viking® 1 Series 24" Built-In Dishwasher-Stainless Steel with water softener and two position adjustable upper rackRead More
What We Offer
Get to know this product.
Product Overview
Multi-Level Washing
- Variable pressure washing with three spray arms ensures clean dishes
- Turbidity sensor monitors the soil level of the dishes
- Triple filtration system removes the smallest particles for clean water circulation
- Flow-through water heater is concealed to provide a safer alternative to exposed heaters
Condensate Quick Dry
- Moisture condensates on the cooler stainless steel tank and door and drains to the sump area
- Quick and efficient drying
Quiet Clean™ Performance Package – 48 dB
- Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
Loading
- Accommodates 14 international place settings
- Two position adjustable upper rack allows for taller glasses in upper rack or larger pans in bottom rack
- Two stemware cradles/cup shelves
- Adjustable tines
- Lower rack – four rows adjustable tines for easy loading of pans
- One-piece silverware/cutlery basket
Built-In Water Softener
- Reduces water hardness to a manageable level to prevent glasses and dishes from etching
LCD Control Panel
- Allows for easy viewing of cycle/option selection and remaining wash time.
Cycles
- Pots/Pans Plus – Extra-heavy soil level
- Pots/Pans – Heavy soil level
- Regular Wash – Normal soil level
- Daily Wash – Medium soil level
- Quick Wash – 35 Minutes!
- Rinse/Hold – Pre-rinse dishes clean
Options
- Half Load – Energy saving function for use with partial loads
- Auto Tablet – Sensor detects rinse aid and automatically sets drying cycle duration
- Delay Start – Allows delayed activation for up to 24 hours
- Sanitize Function – Raises water temperature in final rinse to meet NSF requirements
- LCD screen with remaining time indicator
- Cycle run floor indicator light
- Energy Star Qualified
Finishes
- Available with wrapped Stainless Steel Door Panel installed
Useful Documents
Specifications
General Specs |
| Color | Stainless Steel |
| Steam | No |
| ENERGY STAR Certified | Yes |
| Number of Cycles | 6 |
| Depth (in.) | 22.19 |
| Height (in.) | 35.88 |
| Interior (Settings) | 14 |
| Noise level (dB) | 48 |
| Width (in.) | 23.56 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Appliance Fit Width (in.) | 24 |
| Sanitize Option | No |
| Smart Compatible | No |
| Color Finish Name | Stainless Steel |
| Number Of Place Settings | 14 |
| ADA Compliant | No |
| Cut Out Width | 23.56 |
| Cut Out Height | 35.88 |
| Dishwasher Type | Built-In |
| Control Panel Type | Top |
| Cut Out Depth | 22.19 |
| Voltage | 115 |
| Sound Rating Range | Quieter |
| Third Rack | No |
Certifications |
| NSF Certified Rinse: | Yes |
| Kilowatt Hrs. per Year: | 270 |
| ENERGY STAR® Qualified: | Yes |
Construction |
| Handle Color: | Stainless Steel |
| Handle Type: | Bar |
Dimensions |
| Shipping Weight: | 97 |
| Cutout Dimensions: | 24" x 34" x 24" (WxHxD) |
Display |
| Cycle Countdown: | Yes |
| Rinse Aid Dispenser Indicator: | Yes |
| Controls: | Digital |
Features |
| Removable: | Yes |
| Stemware Holder: | Cup shelves with integrated stemware holder |
| Cutlery Holder: | Yes |
| Silverware Basket: | Yes |
General Features |
| Detergent Dispenser: | Yes |
| Rinse Aid Dispenser: | Yes |
Other |
| Quick Wash: | Yes |
Performance |
| Pots & Pans: | Yes |
| Number of Options: | 4 |
| Quiet Package: | Quiet Clean™ |
Specifications |
| Sanitary Rinse: | Yes, NSF Certified |
| Normal: | Yes |
Storage Features |
| Fold Down Tines: | Yes |
Styling |
| Control Panel Color: | Black |
