Summit® 24" Stainless Steel Wall Mounted Range Hood


Model #:

SEH6624CADA

Model #: SEH6624CADA
1719893
Summit
$99,999.00

At a Glance

Product Dimensions 30"h x 23.5"w x 21.63"d

The SEH6624CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required.Read More

Call for Best Price

What We Offer

Services

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

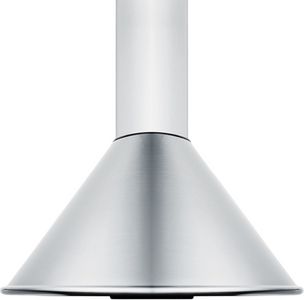

Made in Spain, the SEH6624CADA is a 24" wide range hood with a 600 CFM blower and unique curved canopy design. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two 40 watt halogen light bulbs are pre-installed, offering an elegant illumination of your range.

This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

ADA compliant design

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)

Stainless steel construction

Quality material with an elegant look in brushed stainless steel

600 CFM blower

Professional European motor is preinstalled for easy use

Convertible with filter

Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set

Two aluminum cassette filters

Dishwasher safe filters offer wide filtration area for better ventilation

Timer function

Set the unit to ventilate for a 15 minute interval that automatically turns off when complete

Two 40W lights

Includes two preinstalled incandescent bulbs

Three-speed fan

Offers more options for ventilation

European made

Designed and manufactured in Spain with all UL-Listed components

Height adjustable chimney

Chimney can extend from 29" to 41" for the perfect fit over your range

Useful Documents
Specifications

General Specs

Width (in.)23.5
Height (in.)30
Depth (in.)21.63
ColorStainless Steel
Color/Finish NameStainless Steel
Manufacturer Warranty1 Year Parts & Labor
Range Hood TypeWall Mounted
ADA CompliantYes
ENERGY STAR CertifiedNo
Product Weight (lbs.)29
Outdoor ApprovedNo
Appliance Fit Width (in.)24
Smart CompatibleNo
Maximum CFM600
Bulb TypeLED
Fan Speed Options3
Voltage115
Amp5.0
Frequency60
Range Hood FeaturesLight, Removable Grease Filter
Ventilation TypeConvertible (Both)

WarningProposition 65 Warning for California Residents
