Product Dimensions 8.25"h x 36"w x 2.13"d

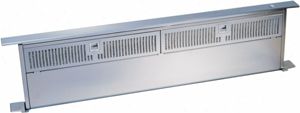

DCS 36" Downdraft Ventilation System with 600 CFM internal blower and simple one touch operationRead More
View Options
Downdraft system eliminates un wanted grease, smoke and odors instantly by moving air down and outside of the dwelling
Downdraft system is flush with the cooktop when in the down position
A CFM rating of 600 and a maximum duct length of 40ft
6 diameter is the required duct size, and has a simple one touch operation
General Specs | |
| Width (in.) | 36 |
| Height (in.) | 8.25 |
| Duct Size (in.) | 6 |
| Depth (in.) | 2.13 |
| Color | Stainless Steel |
| Positioning | Stationary |
| Color Finish Name | Stainless Steel |
| Appliance Fit Width (in.) | 36 |
| Product Weight (lbs.) | 62 |
| Maximum CFM | 600 |
| Voltage | 110/120 |
| Amp | 15 |
| Frequency | 60 |
Construction | |
| Exhaust: | Ducted |
| Chimney: | Fixed |
| Ductwork Type: | Downdraft |
Dimensions | |
| Shipping Weight: | 62 |
Display | |
| Controls: | Mechanical |
General Features | |
| Filter Type: | 2 Dishwasher Safe Grease Filters |
| Pollutant Removal: | Externally Vented |
Other | |
| Considerations: | Venting system MUST terminate outside the home. |
| Air Mover Type(s): | External Blower |
| Air Mover(s) Speed: | 3 |
| Number of Air Movers: | 1 |
Styling | |
| Design: | Retractable Downdraft |
